Ophthalmic / T170 R Type

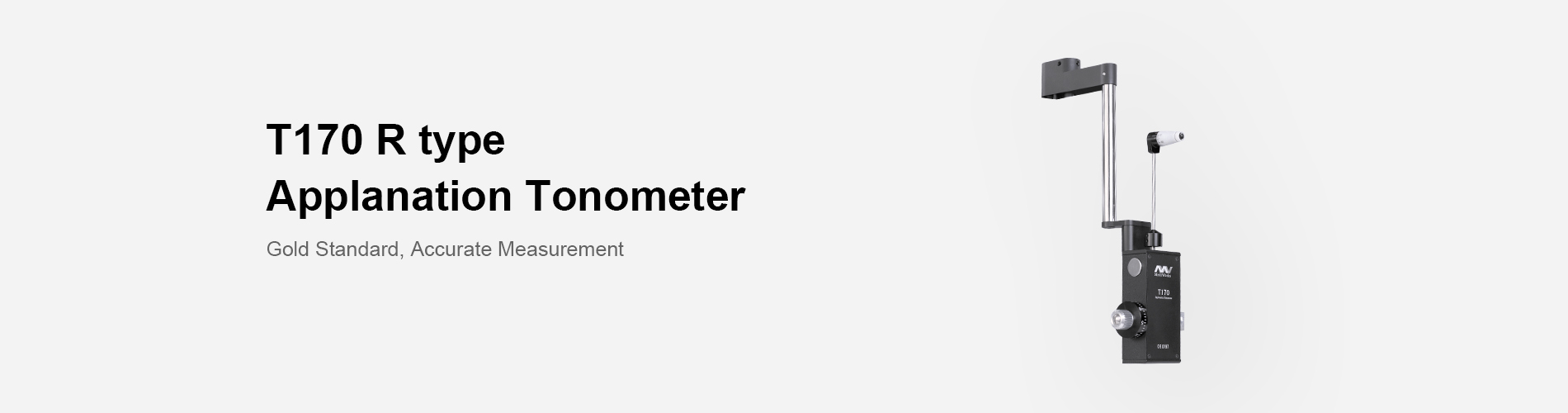

Applanation Tonometer T170 R Type

Gold Standard, Accurate Measurement

goldmann applanation tonometer

Goldmann applanation tonometer is a kind of instrument based on Imbert-Fick law. It is considered to be the gold standard instrument for measuring intraocular pressure. Applanation tonometer T170 is suitable for most slit lamps and pivots in front of the microscope for examination. It can effectively detect whether patients have glaucoma and play an important role in improving the diagnosis and treatment of ophthalmic diseases.


◉ T170 applanation tonometer is designed based on the Goldman principle, which is a world widely gold standard.

◉ Goldmann tonometer can provide fast and accurate IOP measurement data to clinical diagnosis and treatment.

◉ Adjustable mechanical design ensures the reliable measurement result and durable performance of the instrument.

◉ Repeated measuring procedures do not reduce the natural ocular pressure of the patient.

◉ Applanation tonometer combined with most slit lamps: The measurement can be carried out on the patient sitting at the slit lamp in conjunction with other routine microscopic examinations.


Accurate Measurement

With years of tests and clinical applications, Goldmann has been proved to be the the gold standard for tonometry measurement. Based on the proven evidence, MediWorks T170 tonometer applied Goldmann principle in the design and manufacture.
With precision manufacturing process, MediWorks applanation tonometer offers accurate and consistent measurements which give a clear picture of patients' IOP situation to the doctors.


Excellent Mechanics

Full attentions are paid to every detail in the manufacture of MediWorks tonometers. Workers assemble every component carefully and check tight tolerances in weight to make sure the tonometer deliver consistent measurements.


Premium Optics

The prism on the tonometer is the key to accurate measurement. In MediWorks, our skillful workers make these prisms with great care and follow strict quality standards. We offer 3 pcs of prisms in standard package making MediWorks tonometers durable in long term use.

Applanation Tonometer T170 R type 202300613-05.png

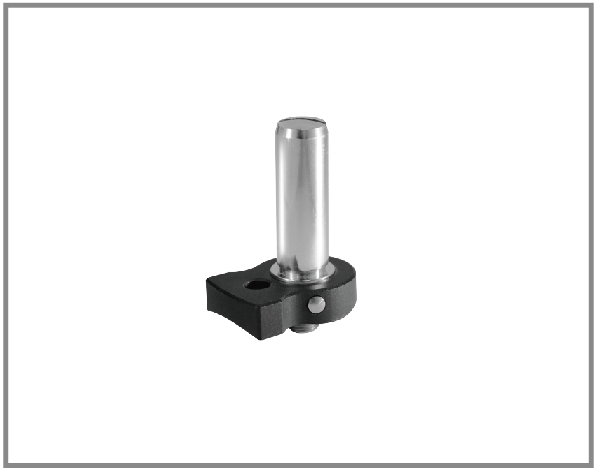

Tonometer Adaptor (R type)
(For R type applanation tonometer)

(Available for S360s / S360 / S390L)

Applanation Tonometer T170 R type 202300613-06.png

Tonometer Adaptor (Z type)
(For Z type applanation tonometer)

(Available for S260s/ S260)

英 06 T170 对折页20220808-05.png


Range of Measurement0 mmHg ~ 80 mmHg (0 kPa ~ 10.64 kPa)
Moving Range of the Rings1.53 x 2 = 3.06 mm
Prism Diameter7 mm
Moving Range of Prism± 1.5 mm
Dimension190 mm x 80 mm x 80 mm(R Type)
Net Weight480 g (R Type)
