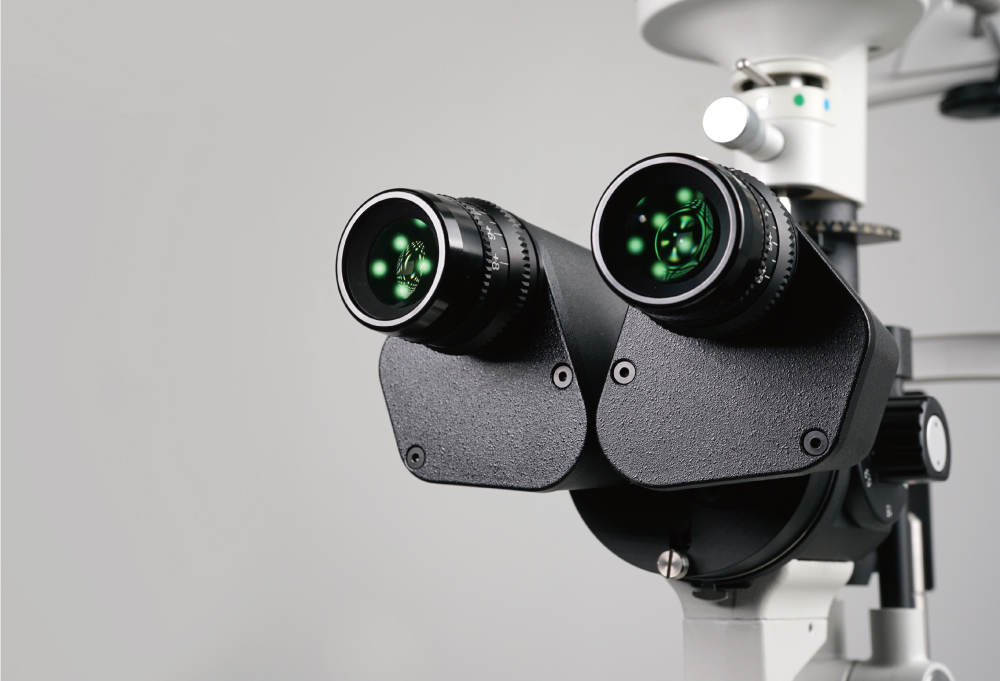

Ophthalmic / Slit Lamp Microscope S360/S360S

S360/S360S Slit Lamp Microscope

3 Mag, HS type


LED Illumination

The light of MediWorks LED lamp is very similar to halogen lamp, which conforms to the operating habit of doctors. The LED lamp MediWorks applied has a low color temperature and high illumination intensity, making view of retina without glare-colors much more vivid and view of cornea with nerves pop out better. The LED lamp has a longer life span and consumes less energy.


Built-in Yellow Filter

Built-in yellow filter along with cobalt-blue filter increases the contrast of Sodium Fluorescein Staining image.Increase positive rate of early corneal epithelial staining.


Easier Installation

Our compact control panel with built-in power supply makes it much easier to install the digital slit lamp microscope especially when installing the slit lamp microscope on an ophthalmic unit. The users do not need to find place to install the chunky power box

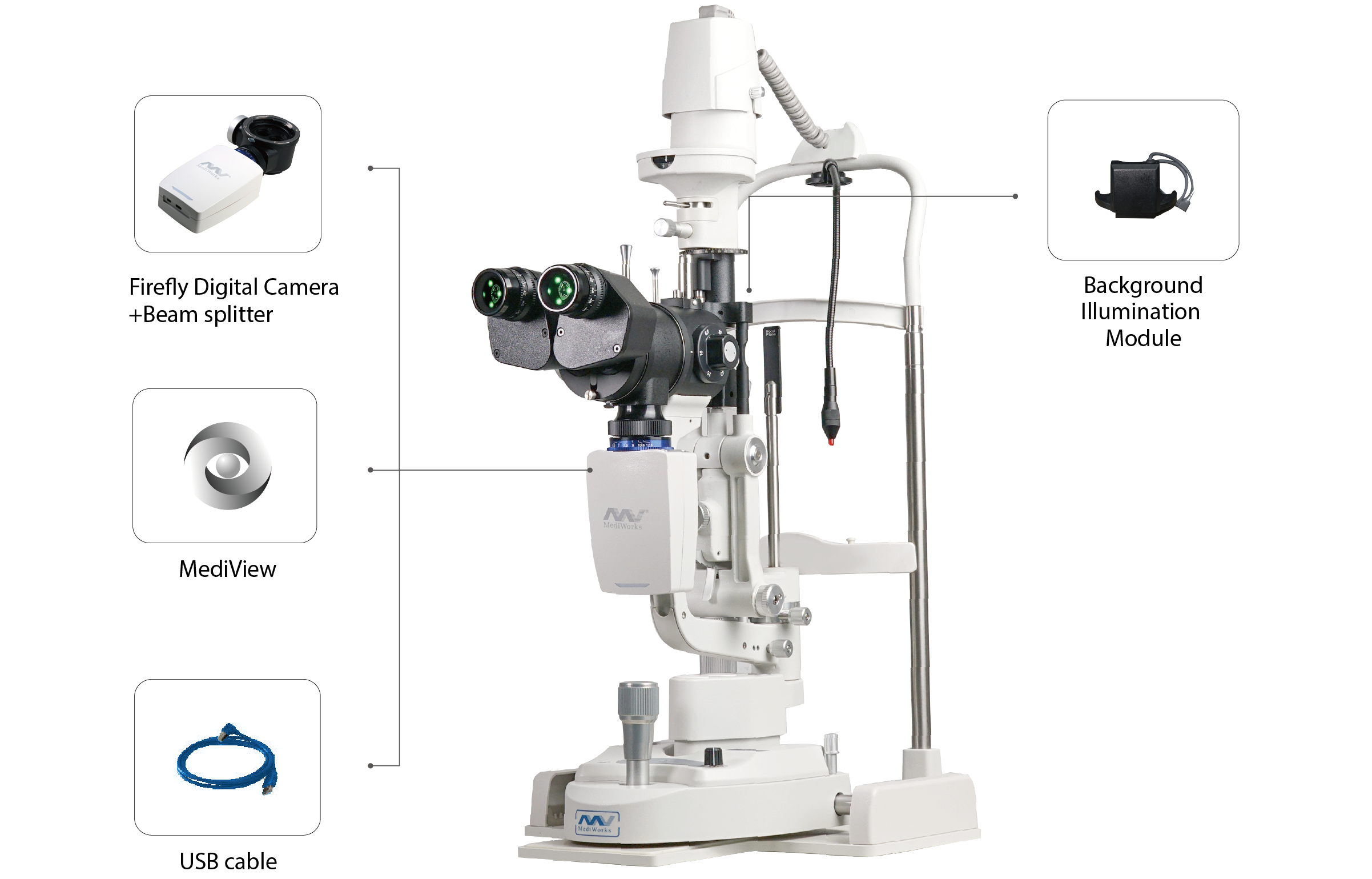

Imaging Solution

It's easy to upgrade your S360/S360S to a Digital Slit Lamp with Firefly Digital Module Kit
(Firefly Digital Camera, Beam Splitter, MediView Software, USB Cable,Background Illumination Module)


Optional Accessories

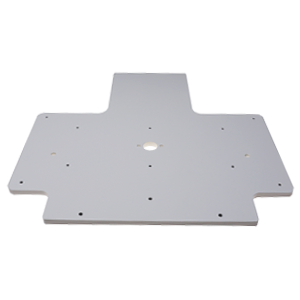

Metal Plate
(work with refraction units)
When placing a slit lamp microscope on a refraction unit, it is suggested to use a MediWorks metal plate for easier installation. With a smart size design, it is easy to move the whole suite of MediWorks slit lamps from one refraction unit to another without drilling any screw holes on the tabletops


Instrument Stand Pin
(work with US style instrument stand)
This instrument stand pin is specially designed to install MediWorks slit lamps onto US-style instrument stands. The diameter of the joint pin is 19mm, compatible with most of the instrument stands. With this pin, the slit lamp tabletop can be installed to the lower slit lamp arm of the instrument stand.


Measuring Eyepiece


Observation Tube

Specifications

MicroscopeS360S360S
Microscope TypeGalilean Type
Magnification ChangeRevolving drum 5 stepsRevolving drum 3 steps
Total Magnification6.3X, 10X, 16X, 25X, 40X10X, 16X, 25X
Optical Resolution2700·N lp/mm (200 lp/mm)
Eyepieces12.5X
Angle between Eyepieces10°
Pupillary Adjustment52mm-80mm
Diopter Adjustment-8D~+8D
Field of ViewØ36.2mm, Ø22.3mm, Ø14mm, Ø8.9mm, Ø5.7mmØ22.3mm, Ø14mm, Ø8.9mm

Slit Illumination
Slit Width0~14mm continuous (slit becomes a circle at 14mm)
Slit Length1~14mm continuous
Aperture DiametersØ14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
Slit Angle0°~180°
Slit Inclination5°, 10°, 15°, 20°
FiltersHeat-absorbing filter, ND filter, Red-free filter, Cobalt blue filter, Built-in yellow filter
LampLED
Luminance≥150klx

Power Supply
Input Voltage~100V~240V
Input Frequency50Hz/60Hz
Rated current1.2A
Output VoltageLED 3V,Fixation 15V

Packaging
Dimension740mm x 450mm x 530mm(L/W/H)
Gross weight23kg
Net weight17kg
