Scansys TA517 3D Anterior Segment Analyzer

The Third Pole

3D Anterior Segment Analyzer TA517

Scansys TA517 3D Anterior Segment Analyzer

Provides a comprehensive measurement for the ocular anterior segment

★Adopting an ultra-high-definition Scheimpflug camera, it can generate 28/60 high-definition anterior segment Scheimpflug images within 1/2 seconds.
★A total of 107,520/230,400 data analysis points are collected, which can provide comprehensive data support for more accurate measurement of the ocular anterior segment.
★It already has a global database of several thousand cases, and the number is still growing dynamically along with the increase in the collected sample size.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-13.png

Maps

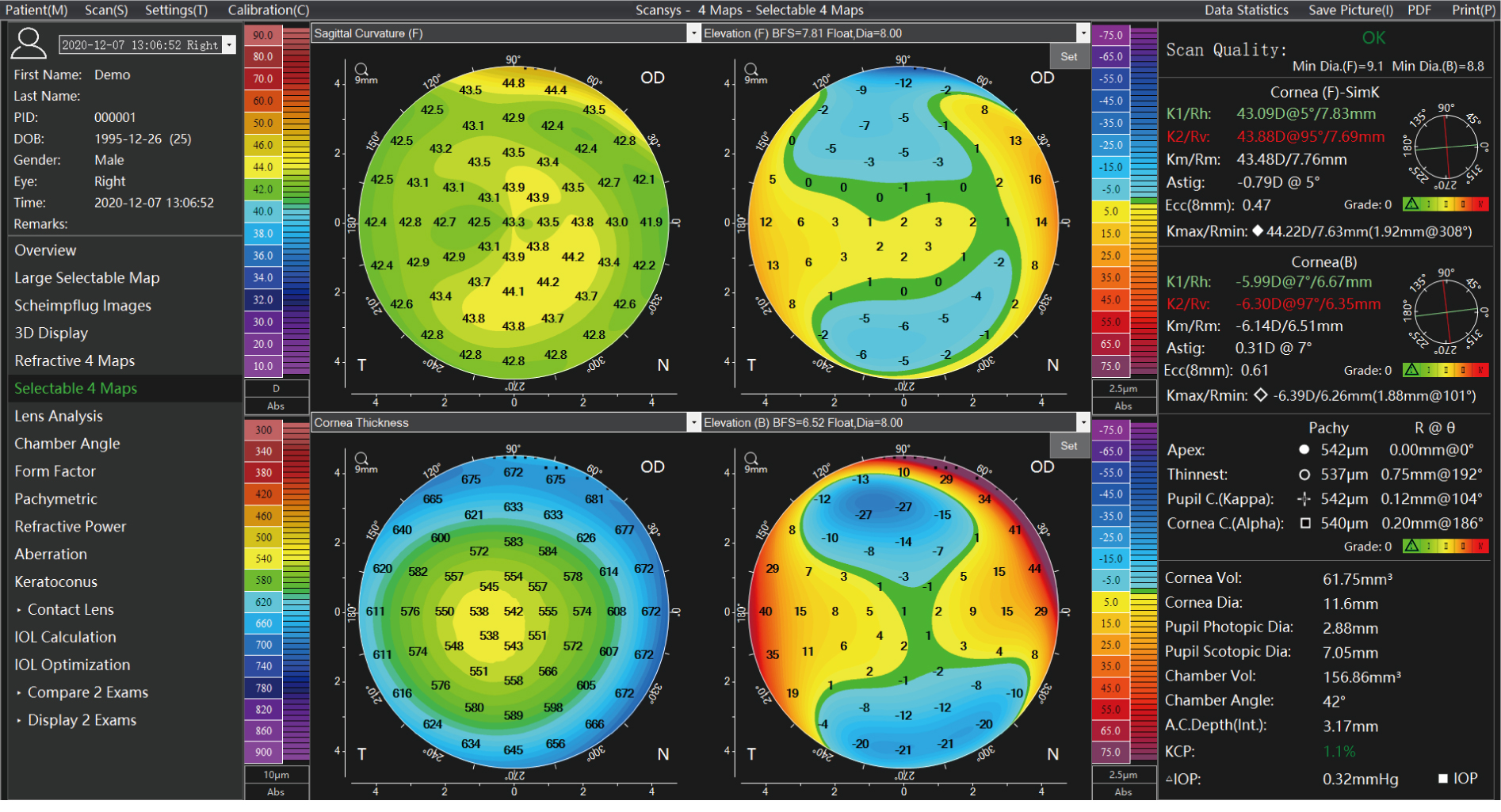

Cornea Thickness MapTangential Curvature Map (Corneal Anterior Surface)Tangential Curvature Map (Corneal Posterior Surface)
Sagittal Curvature Map (Corneal Anterior Surface)Tangential Curvature Map (Corneal Posterior Surface) Elevation Map (Corneal Anterior Surface)
Elevation Map (Corneal Posterior Surface)True Net Power MapKeratometric Power Deviation Map
Anterior Chamber Depth MapRefractive Power Map (Corneal Anterior Surface)Total Cornea Power Map (Gaussian)
Total Cornea Power Map (Ray Tracing)Cornea Sagittal Height Map (Corneal Anterior Surface)Cornea Sagittal Height Map (Corneal Posterior Surface)
Corneosclera Sagittal Height MapCorneosclera Elevation Map

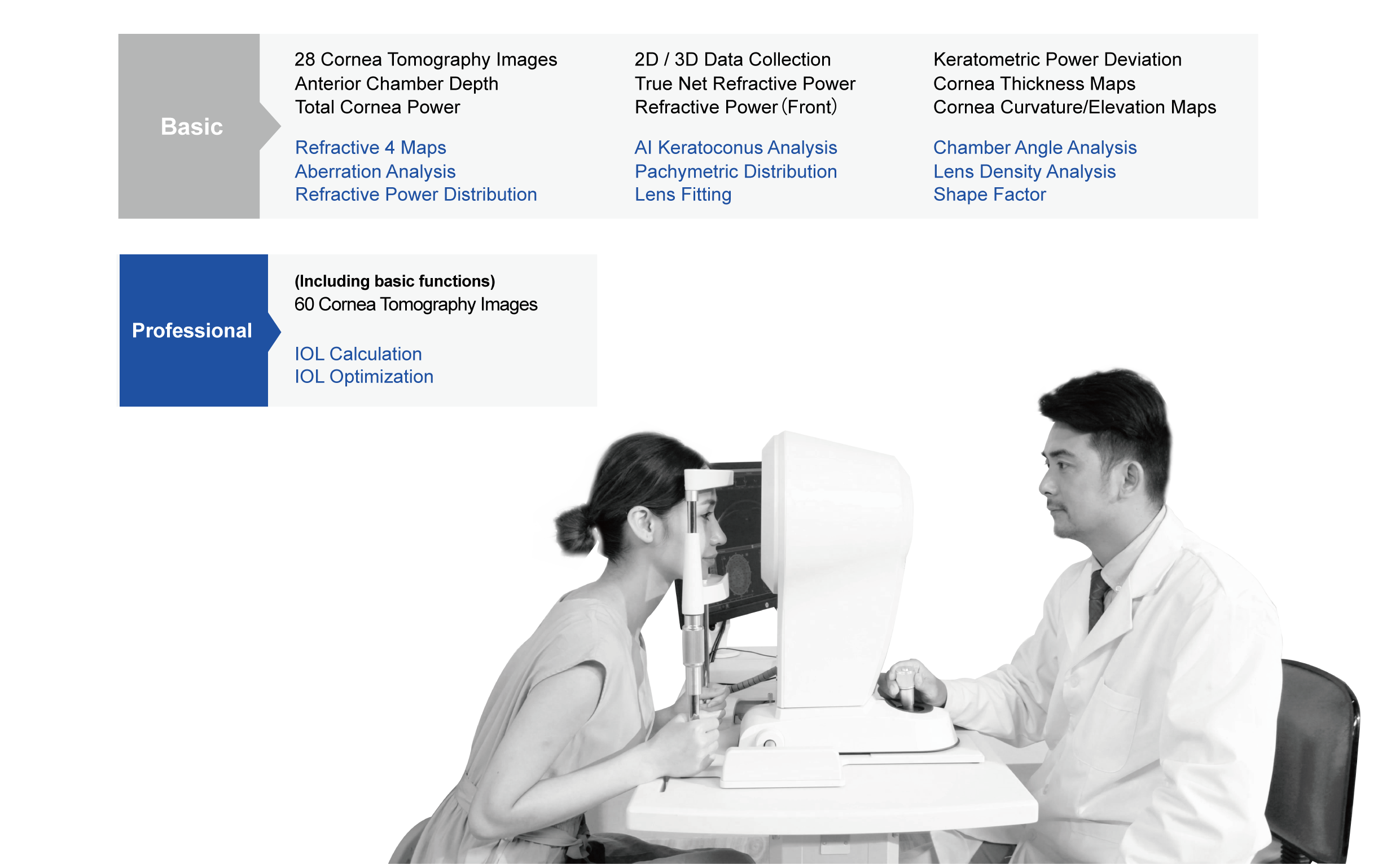

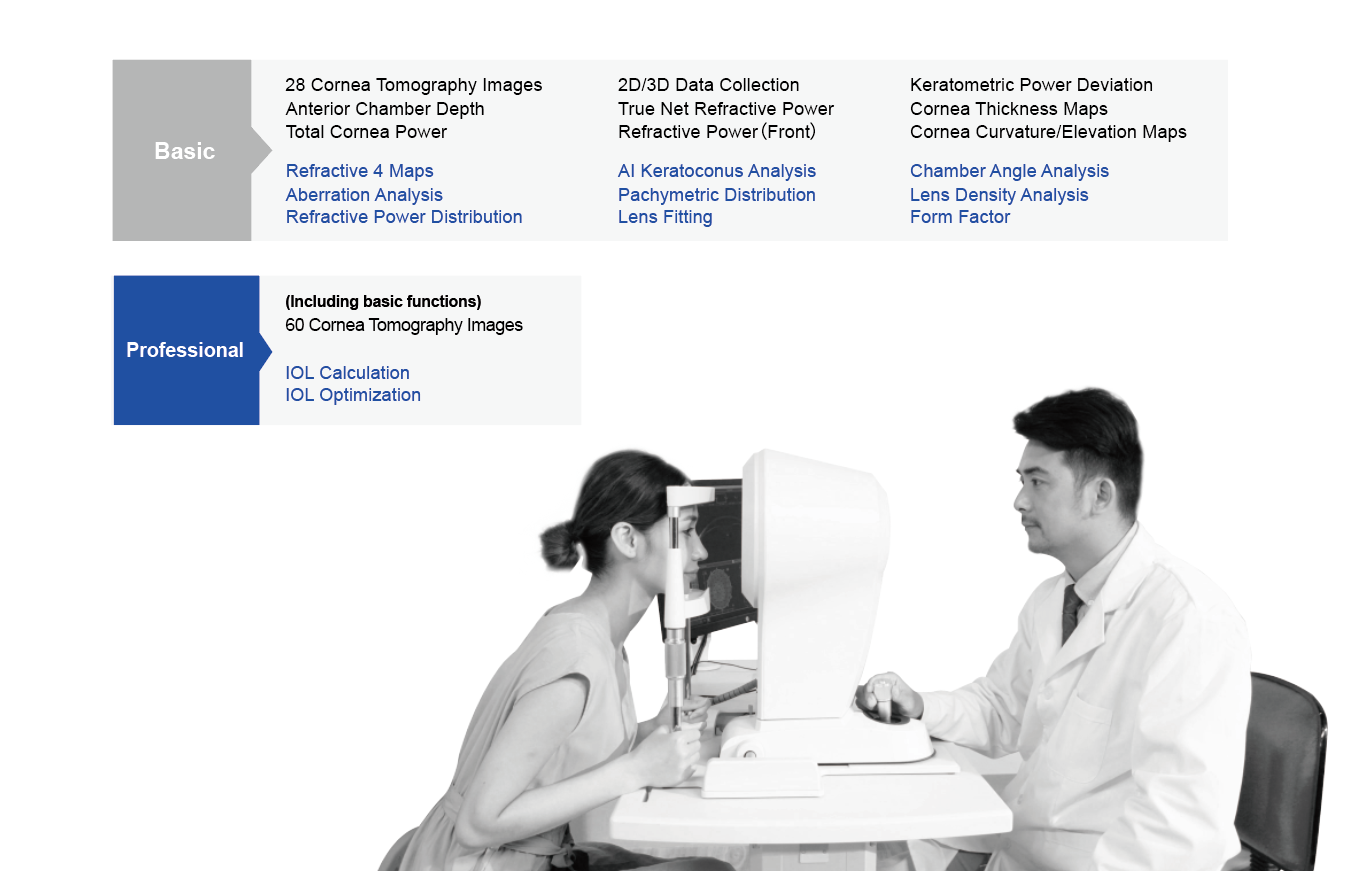

Functional Modules

Refractive SurgeryRefractive Cataract SurgeryContact Lens FittingGlaucoma Screening & Others

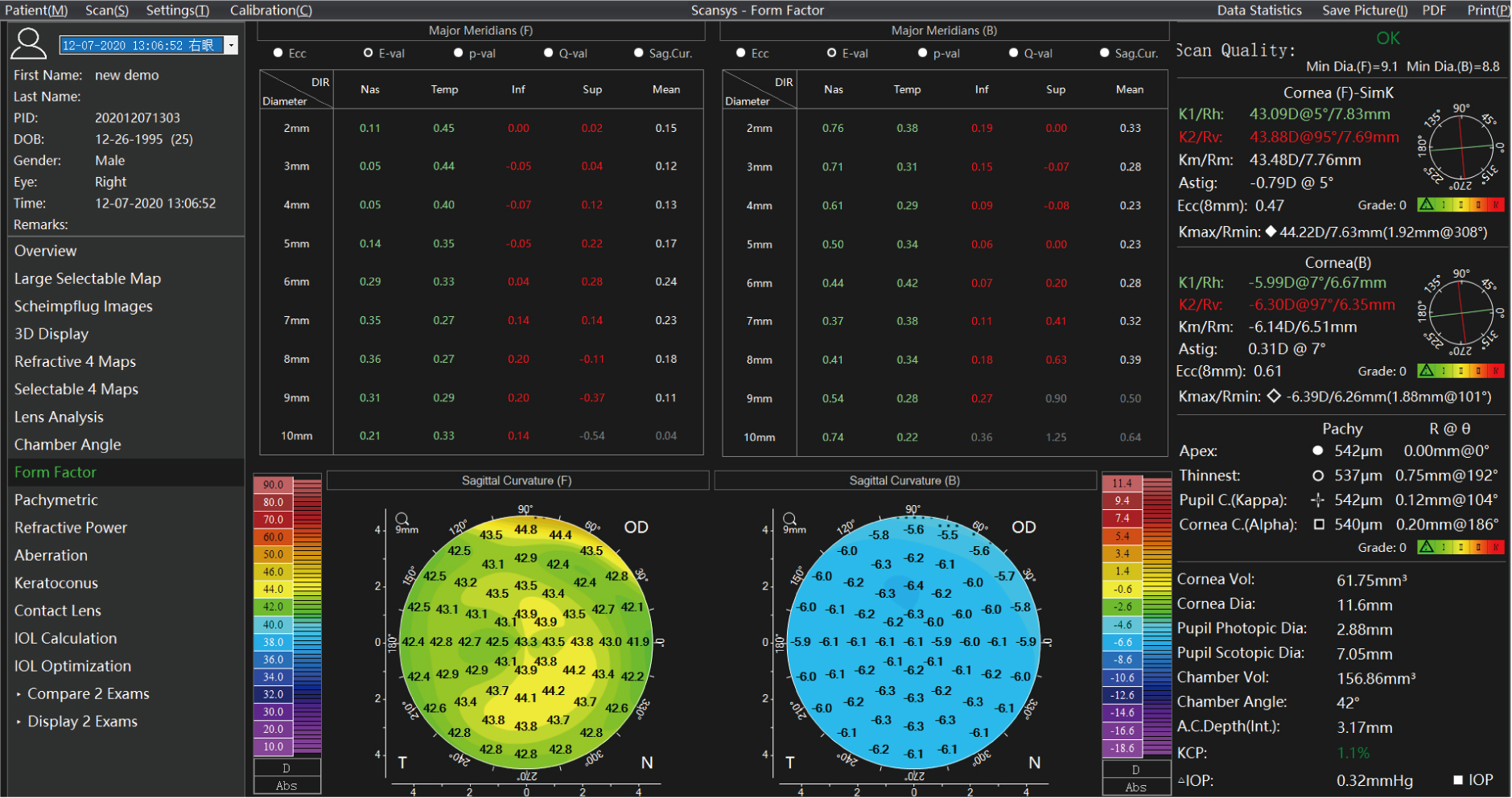

Refractive 4 MapsCrystalline Lens Density AnalysisScleral Lens Module(NEW)Anterior Chamber Angle Analysis
Selectable 4 MapsIOL CalculationCorneal Shape FactorIOP Correction Formula
Pachymetric ModuleIOL Optimization(POPULAR)Contact Lens Simulated FittingICRS Implantation Recommendation
Refractive Power DistributionAberration & Visual Quality AnalysisAutomatic Calculation of Contact Lens Fitting ParametersComparison of 2 Examinations
Keratoconus Analysis(POPULAR)
Binocular Contrast of Refractive 4 Maps
ICL Recommendation & Postoperative Evaluation
Aberration & Visual Quality Analysis
Fourier Analysis
20250106 TA 517 Scansys 3D Anterior Segment Analyzer-14.png

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-14.png

Clinical Application in Contact Lens Fitting

Scleral Lens Module

Scansys can capture 60 high-definition Scheimpflug images of corneosclera in a single scan, covering a 16mm-diameter of corneoscleral area. It can display the corneoscleral sagittal height in a 360° panoramic view without any multiple scans and image stitching, and provide 13 key parameters so as to offer comprehensive and accurate data support for scleral lens fitting.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-15.png

Contact Lens Simulated Fitting

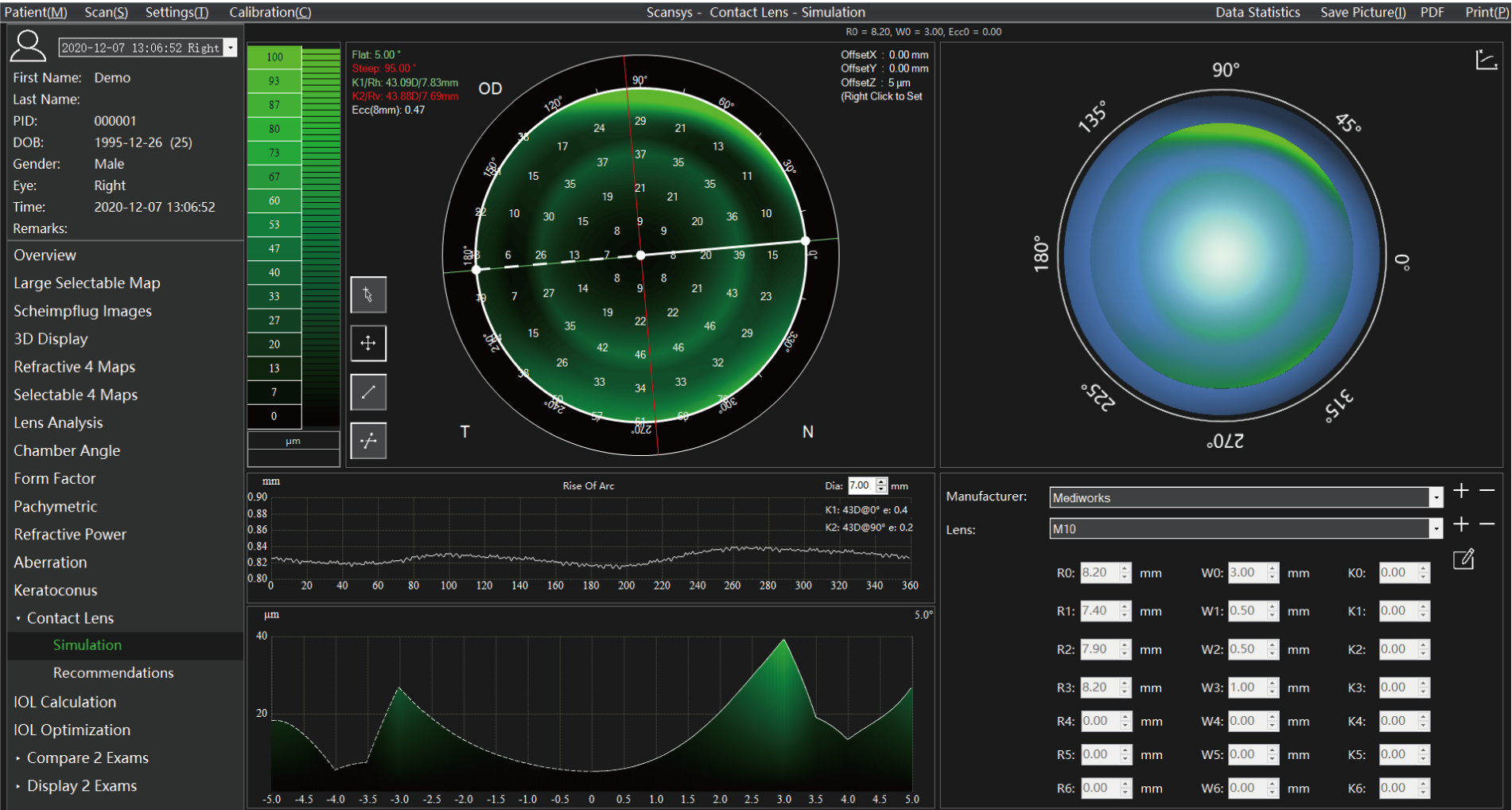

Scansys allows eye-care professionals to customize the contact lens database. Combined with the corneal parameters of patients, it can simulate the contact lens fitting effect (3D/2D) under the corneal fluorescence staining with slit lamp. Moreover, an ideal fluorescence fitting simulation effect can be obtained through parameter adjustment. This is helpful for beginners to grow rapidly, improve the fitting efficiency of orthokeratology lenses, and avoid the trouble and discomfort caused to patients by changing trial lenses multiple times.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-16.png

Automatic Calculation of Contact Lens Fitting Parameters

Scansys has a built-in automatic calculation for contact lens fitting , which can help eye-care professionals quickly obtain the fitting parameters of orthokeratology lenses, soft contact lenses or RGP lenses based on the patients’ corneal parameters.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-13.png

Clinical Application in Rapid Keratoconus Diagnosis

Keratoconus Analysis

(Popular Function)

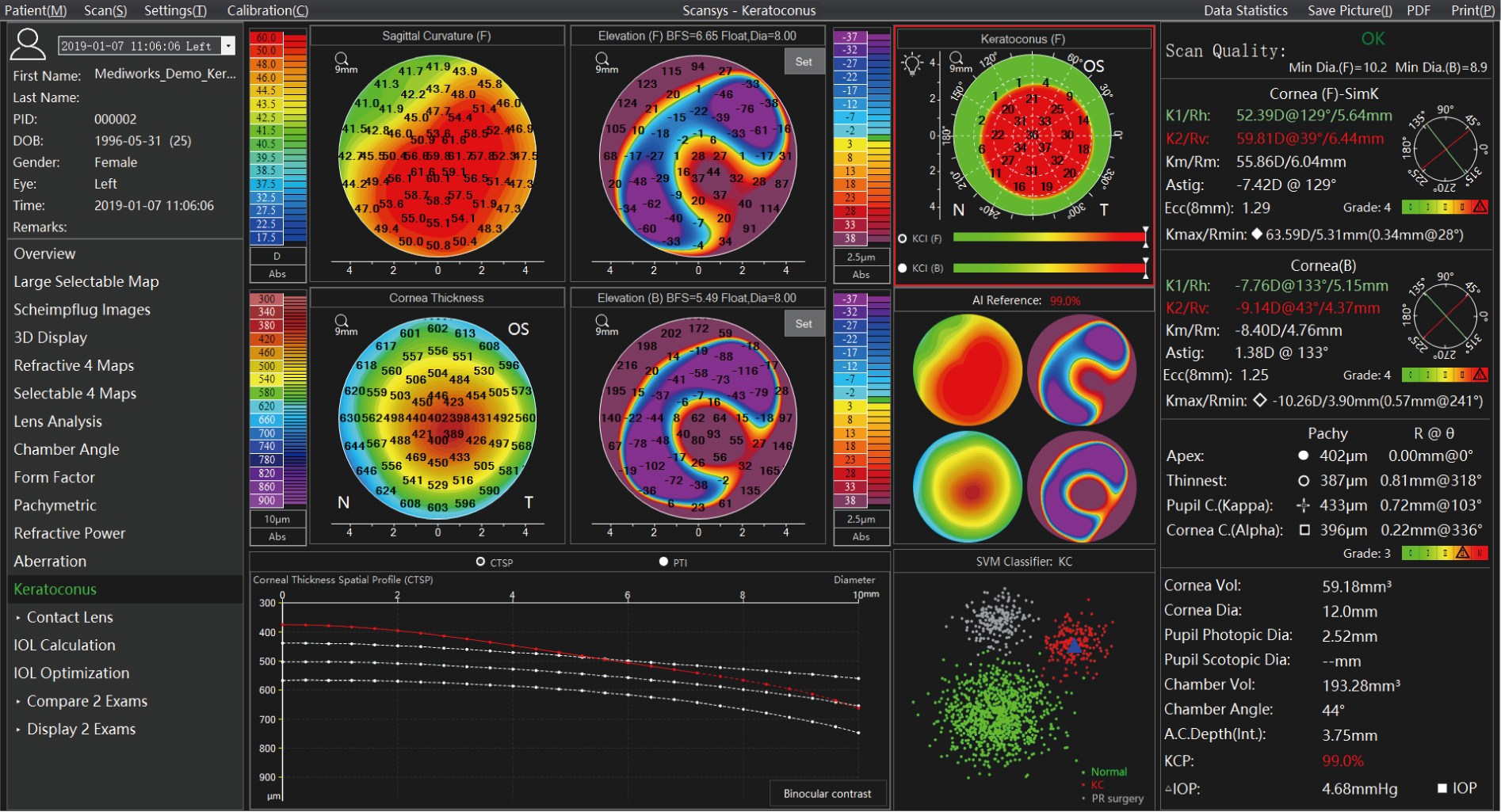

The various keratoconus related parameters provided by Scansys, such as the Refractive 4 Maps, Keratoconus Index (KCI) of the anterior and posterior corneal surfaces, Keratoconus Probability (KCP) and Keratoconus Grading (Grade 0-IV), etc., can help eye-care professionals analyze keratoconus effectively.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer-14.png

Binocular Contrast of Refractive 4 Maps

The corneal morphology of normal people's binocular eyes shows a certain degree of symmetry, while patients with keratoconus often have the disease onset in one eye first. Eye-care professionals can use the binocular contrast function of Scansys to compare the morphology and values of the Refractive 4 Maps of the patient's binocular corneas, thereby improving the keratoconus screening efficiency in the early stage, such as forme fruste keratoconus. It is also possible to determine whether keratoconus progresses by comparing the differences of the same eye of the patient at different time points.

Clinical Application in Refractive Cataract Surgery

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-09.png

Crystalline Lens Density Analysis

By calculating the gray value in both the cross-sectional and longitudinal sections of the crystalline lens, Scansys can assist eye-care professionals better design the cataract surgeries and the intraoperative operations.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-10.png

IOL Calculation

Scansys has built-in multiple intraocular lens calculation formulas such as Jin, SRK-T, Holladay 1, Hoffer Q, etc. and the IOL parameters provided by manufacturers. It can quickly provide the corresponding IOL power for common cataract patients or cataract patients after refractive laser surgeries.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-11.png

IOL Optimization

(Popular Function)

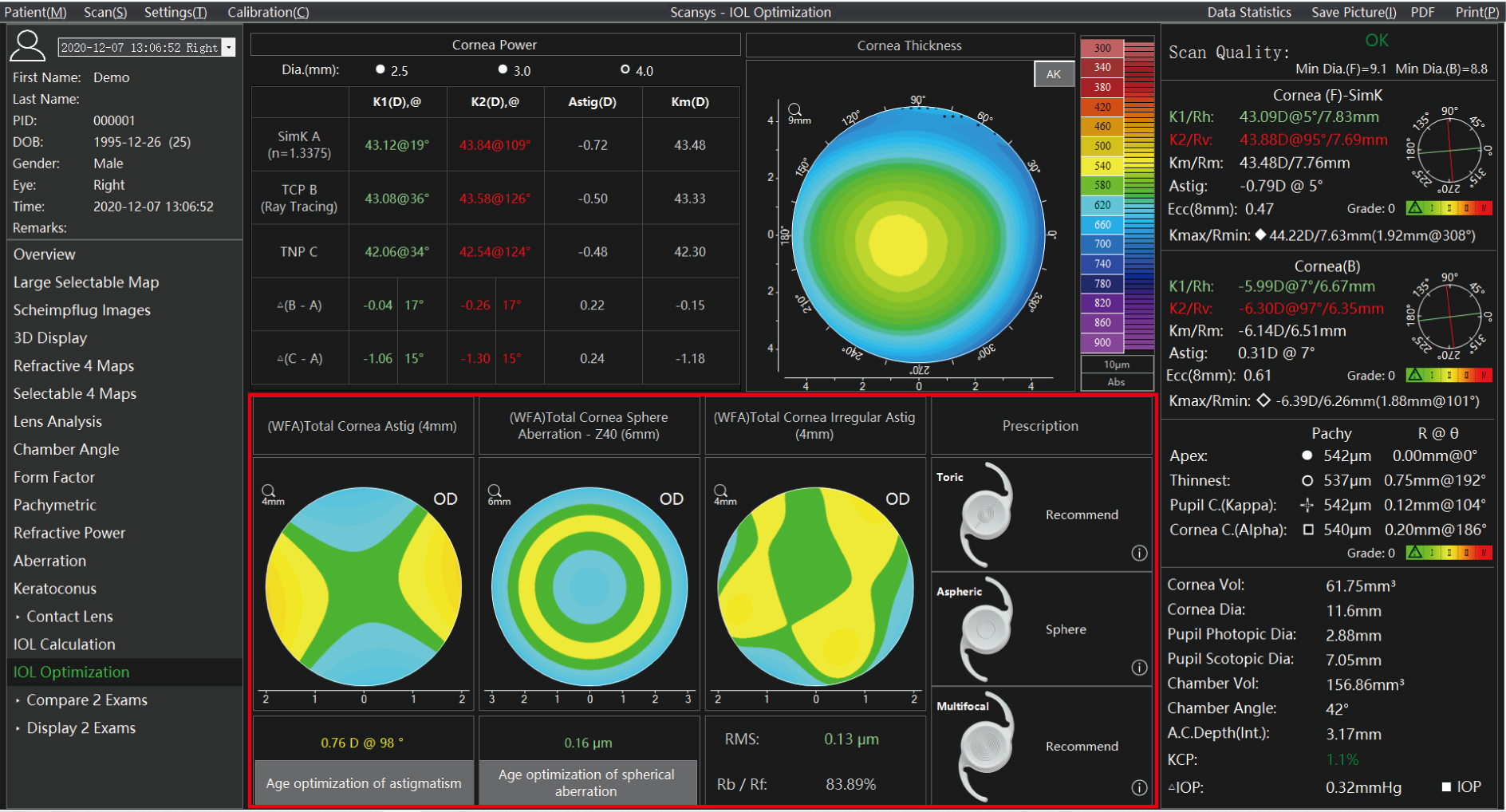

Scansys provides key parameters such as three types of corneal refractive power (Simk, Total Corneal Power and True Net Power), Total Corneal Astigmatism, Total Corneal Spherical Aberration, Total Corneal Higher-Order Aberration, the ratio of the curvature radius of the posterior corneal surface to that of the anterior corneal surface, Kappa Angle and Alpha Angle. Combined with the built-in calculators for age optimization of astigmatism and age optimization of spherical aberration, it can truly accomplish the optimization of advanced IOLs and help patients achieve the best visual quality after refractive cataract surgery.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-12.png

Clinical Application in ICL Surgery

ICL Size Recommendation and Vault Prediction

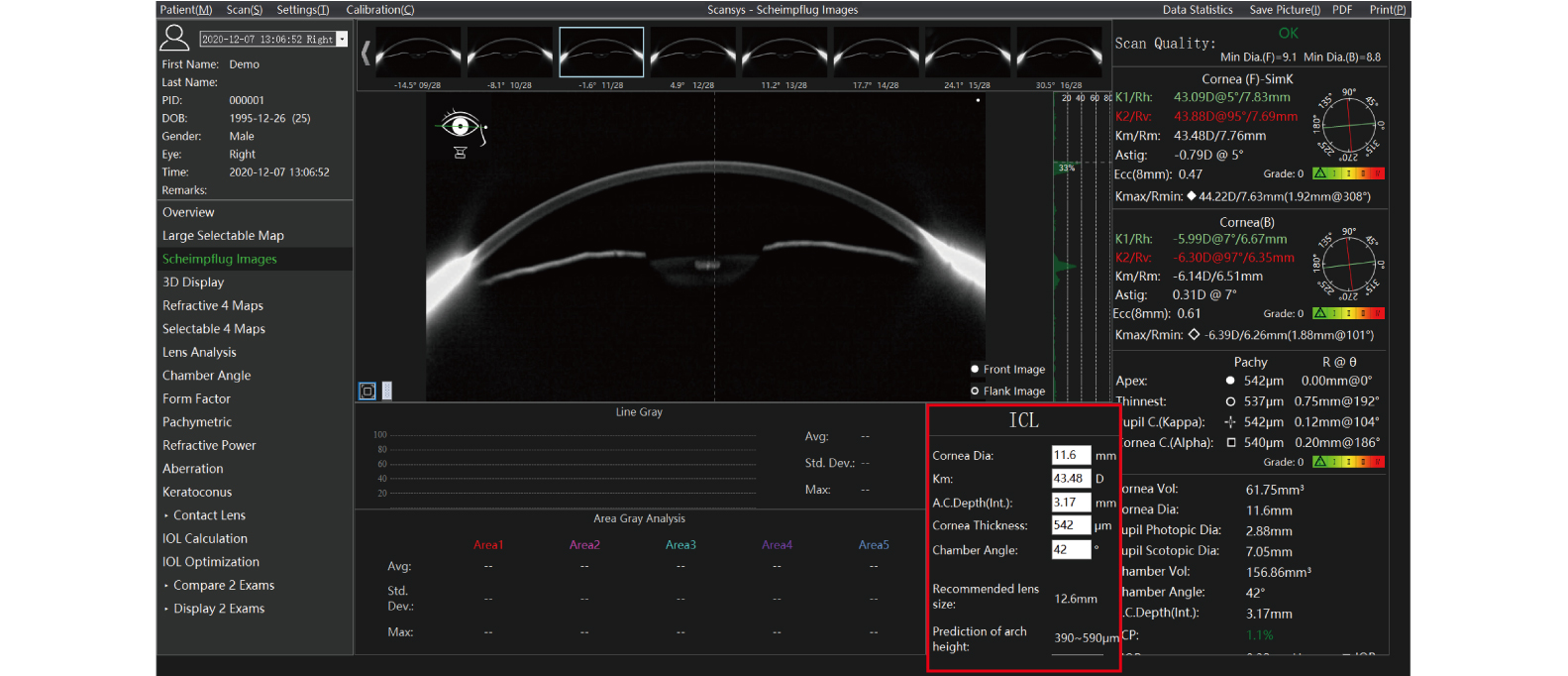

Scansys can, based on the analysis of data such as the corneal diameter, corneal curvature, corneal thickness, anterior chamber depth and anterior chamber angle of the patient, recommend the size of the ICL lenses and predict the range of postoperative vault.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-13.png

Postoperative ICL Vault Measurement

Scansys supports capturing high-definition Scheimpflug images at any angle after the ICL surgery to precisely measure the postoperative vault, thereby more objectively evaluating the effect and safety of the surgery.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-14.png

Clinical Application in Visual Quality Analysis

Wavefront Aberration Analysis

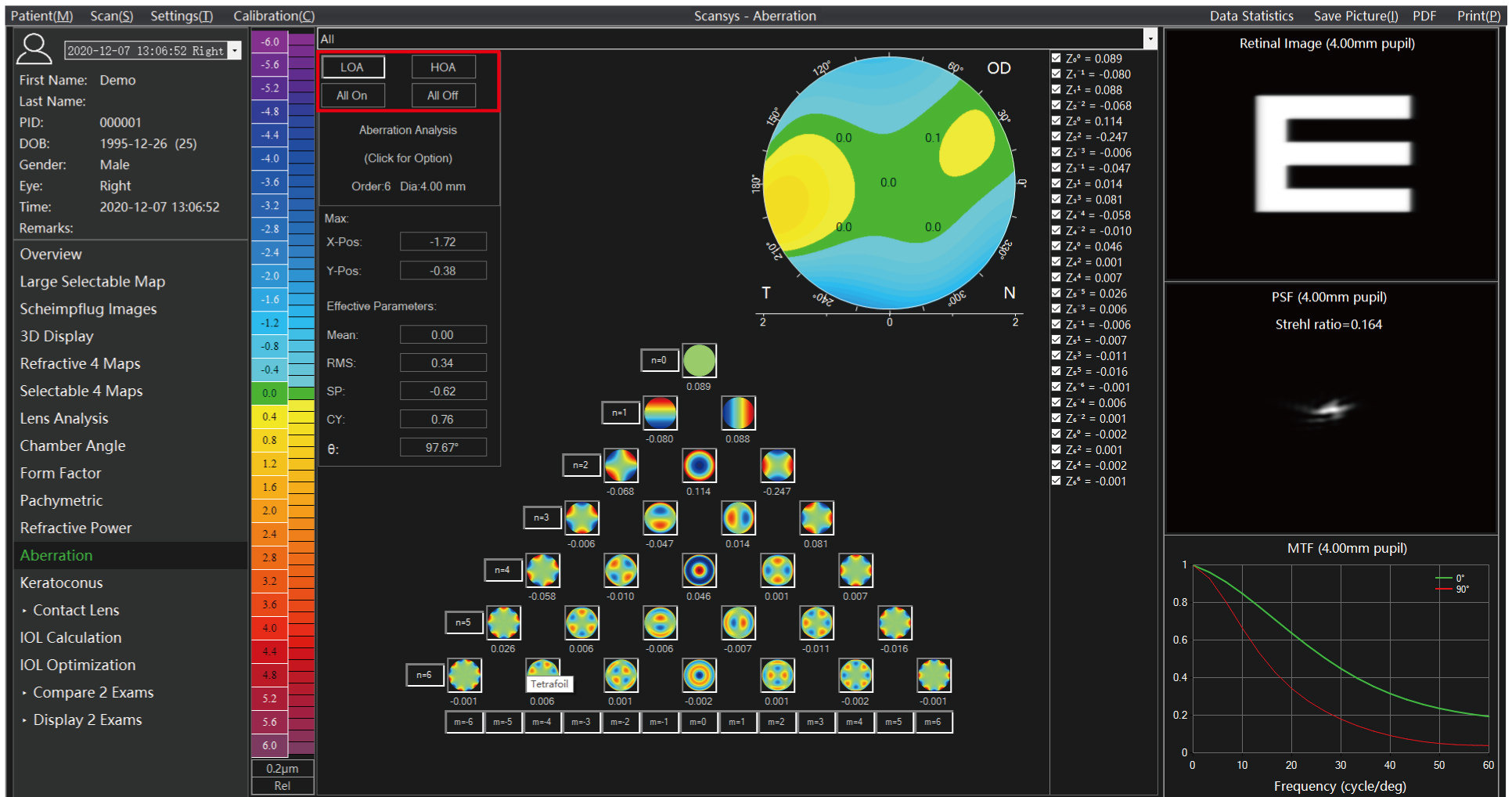

Scansys provides up to 8-order Zernike wavefront aberration data of the corneal anterior and posterior surfaces and the entire cornea with a maximum diameter of 12mm. Meanwhile, it can also simulate the visual quality image in a more intuitive way through Retinal Imaging, Point Spread Function (PSF) and Modulation Transfer Function (MTF), etc., providing a crucial basis for the preoperative plan design and postoperative visual quality evaluation of refractive cataract surgery and customized corneal refractive surgery.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-15.png

Fourier Analysis

Scansys can decompose the complex corneal topography data of patients into quantitatively analyzable components such as Spherical Component, Decentration Component, Regular Astigmatism Component and Irregularity Component through Fourier Analysis, which can provide more scientific guidance basis for eye-care professionals to design refractive cataract surgery and personalized corneal refractive surgery plans.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-16.png

Clinical Application in ICRS Surgery

ICRS Implantation Recommendation

Scansys is capable of providing a comprehensive set of parameters necessary for creating corneal stromal ring tunnels both through manual dissection (utilizing a corneal stromal ring tunnel dissector) and femtosecond laser dissection based on the corneal morphology of patients, in order to improve the predictability of Intrastromal Corneal Ring Segments (ICRS) implantation and reduce surgical complications.

Clinical Application in Glaucoma Screening

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-17.png

Anterior Chamber Angle Analysis

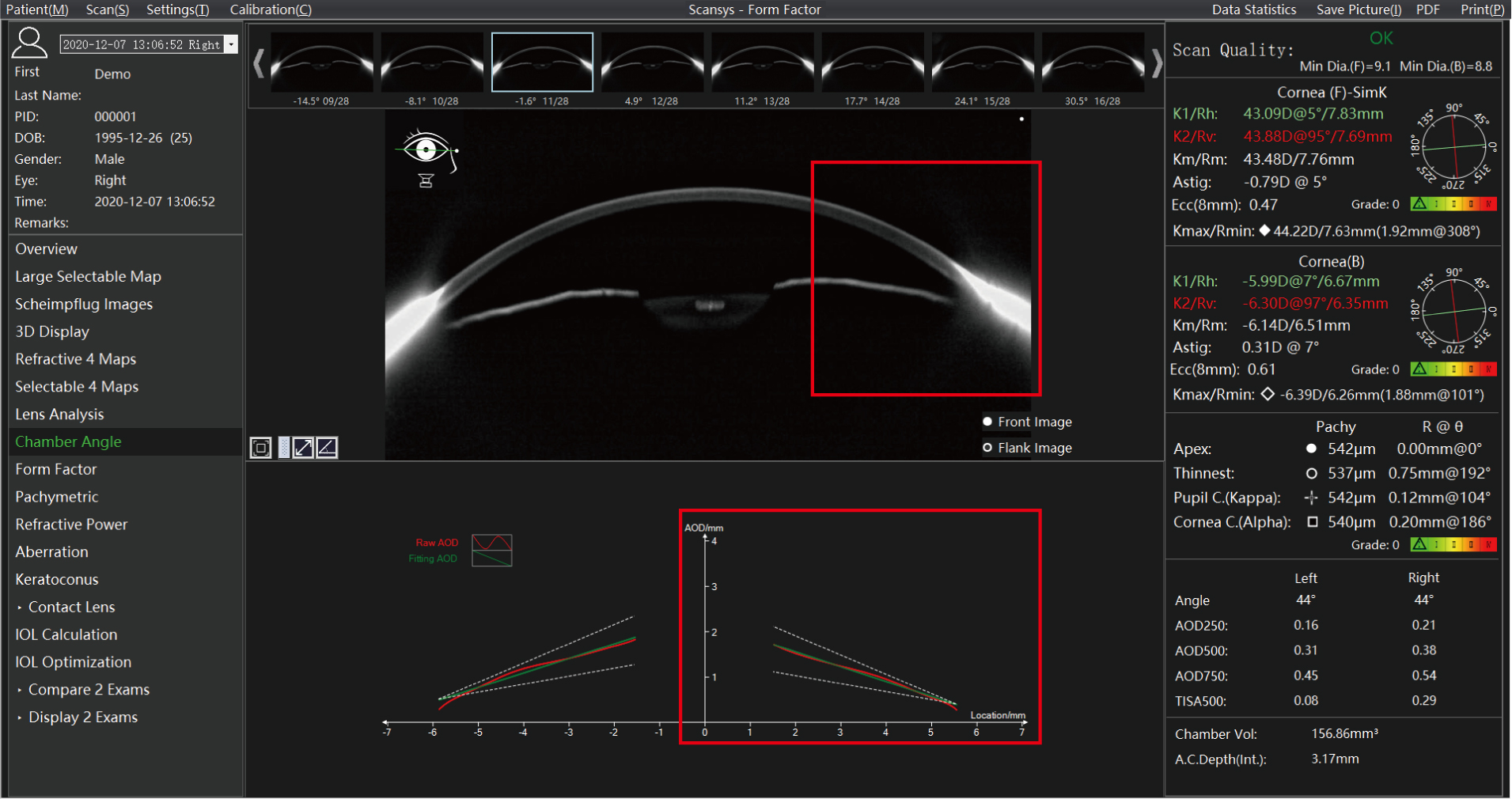

By calculating the gray levels of the anterior chamber and the anterior chamber angle of patients, Scansys can obtain parameters such as Angle Opening Distance (AOD) and Trabecular-Iris Space Area (TISA) and thereby present the distribution trend curve of the original AOD and the linearly fitted distribution trend on both sides of the corneal apex, as well as parameters such as Anterior Chamber Angle, Anterior Chamber Volume, and Anterior Chamber Depth. This is of certain enlightenment significance for the early screening of glaucoma and can also track the effect of laser peripheral iridectomy.


20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-18.png

IOP correction Formula

Scansys has 5 built-in IOP correction formulas based on corneal thickness, which help eye-care professionals well understand the real IOP of patients.

User Function Customization

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-19.png

Parameters such as corneal volume and anterior chamber volume with the corneal apex and the thinnest point as the origin have been developed according to the scientific research needs of the KOL.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-20.png

The interface for setting contact lens parameters has been developed to fulfill the user’s need for specific contact lens fitting.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-21.png

The recommendation module for ICRS implantation has been developed to meet the user’s surgical need.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-22.png

The IOL calculation formula of Jin was jointly developed with the cataract expert.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-23.png
20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-24.png

The calculation softwares for the age optimization of IOLs developed by cataract expert have been built in.

20250106 TA 517 Scansys 3D Anterior Segment Analyzer (2)-07.png

MediWorks Marks Crucial Milestone:Over Scansys TA517 Devices Installed Globally

Technical Specification

CameraDigital infrared camera + Scheimpflug digital CCD camera
Light SourceLED slit
Scanning Speed28 images within 1 second/ 60 images within 2 second/ single image
Data Points107520 / 230400
Work distance80 mm
Corneal topography9 mm / 12 mm
Corneal thickness300 ~ 900 μm
Anterior chamber depth0.8 ~ 6 mm
Diopter12 ~ 72 D
White to white6 ~ 14 mm
Pupil diameter 1 ~ 10 mm
Anterior chamber volume15 ~ 300 mm³
Chamber angle16 ~ 60 °
Kappa/AlphaR( 0 ~ 3 mm) θ( 0 ~ 360° )

Work Range
Front and back115 mm
Left and right100 mm
Up and down30 mm

Power Supply
Input voltage~100 V ~ 240 V
Input frequency50 Hz / 60 Hz

Weight and Size
Device dimension505 mm x 345 mm x 460 mm ( L/W/H )
Device weight12 kg
Package dimension700 mm x 600 mm x 830 mm ( L/W/H )
Package weigh25 kg

System Specifications
PC configurationi5 ~ 10500T 8GB memory 256GB SSD + 1TB storage
Display1920 × 1080 23.8 inch
PC systemWindows 10
