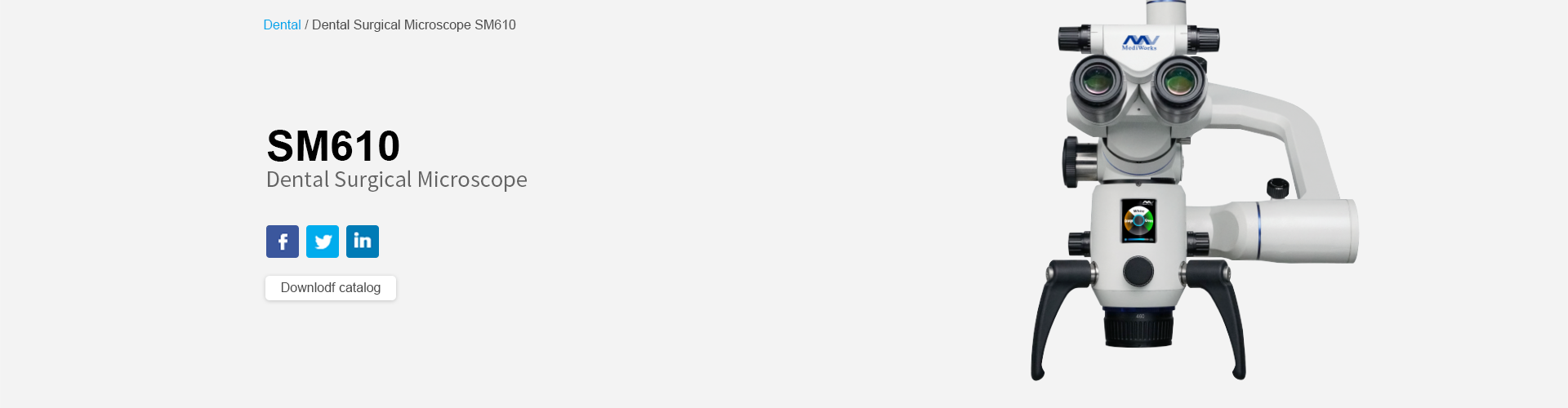

Dental / Dental Surgical Microscope SM610

Dental Surgical Microscope SM610

Suitable for Root Canal Therapy Professional Dental Operating Microscope Refined Dental Microscope Treatment

A Great Partner for Root Canal Treatment

Dental Surgical Microscope SM610

The dental operating microscope SM610 is a powerful auxiliary equipment that provides magnification and illumination for doctors in the process of dental operation. Our dental operating microscope adopts high-quality optical lenses, which can provide doctors with ultra-clear image quality and greatly reduce the fatigue of the eyes, and has an ergonomic design, which can effectively improve the comfort of doctors at work. Fine dental microscope treatment mode can accurately see the deep problems of teeth, so as to better treat.

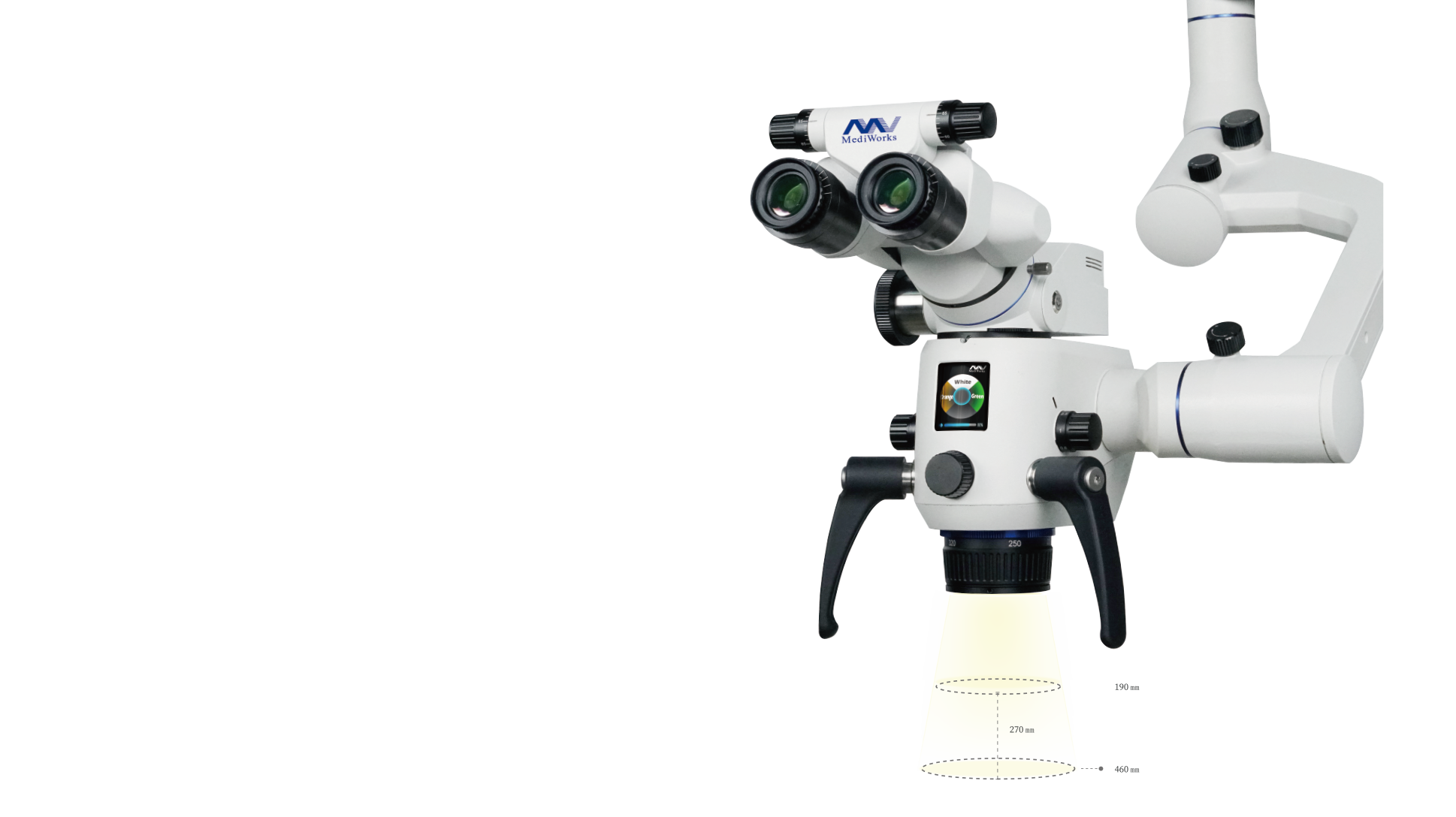

Variofocus Objective

The variable working distance of dental operating microscope SM610 can reach 190 mm to 460 mm.

5 Steps Magnifications Transmission

MediWorks's dental surgical microscope can perform optical magnifications in five stpes and can provide a high-definition field of view during dental surgery.

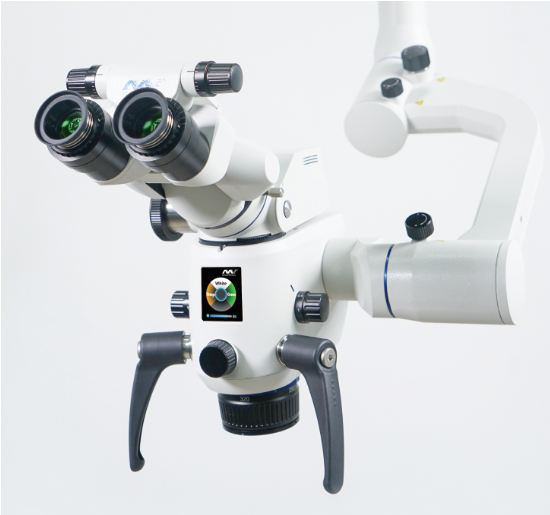

Information Display

The LED display will be always visually showing filter modes and illumination statues.

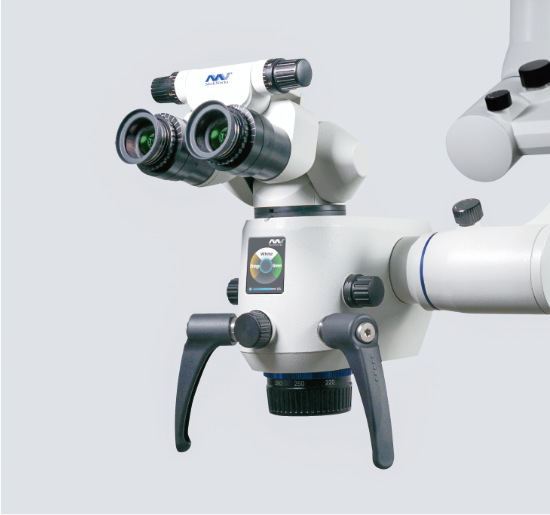

Multifunctional knob

The light source modes in the SM610 multi-function knob include orange filter, white light source, and green filter.


White light source

Using medical LED light source with high CRI, excellent color restoration and uniformity of lighting spot .


Orange filter

Used for material filling, can prevent resin material curing too fast.


Green filter

Used for observing the small vessels and bleeding points in the blood environment.

Cutting-edge Optical Lens

Advanced optical leans with apochromatic Design (APO), able to remove the color difference, improve articulation index and increase the depth of field.

Ergonomic Design

The tiltable handle of the dental surgical microscope can be ergonomically designed to bring a more comfortable operation to the doctor.

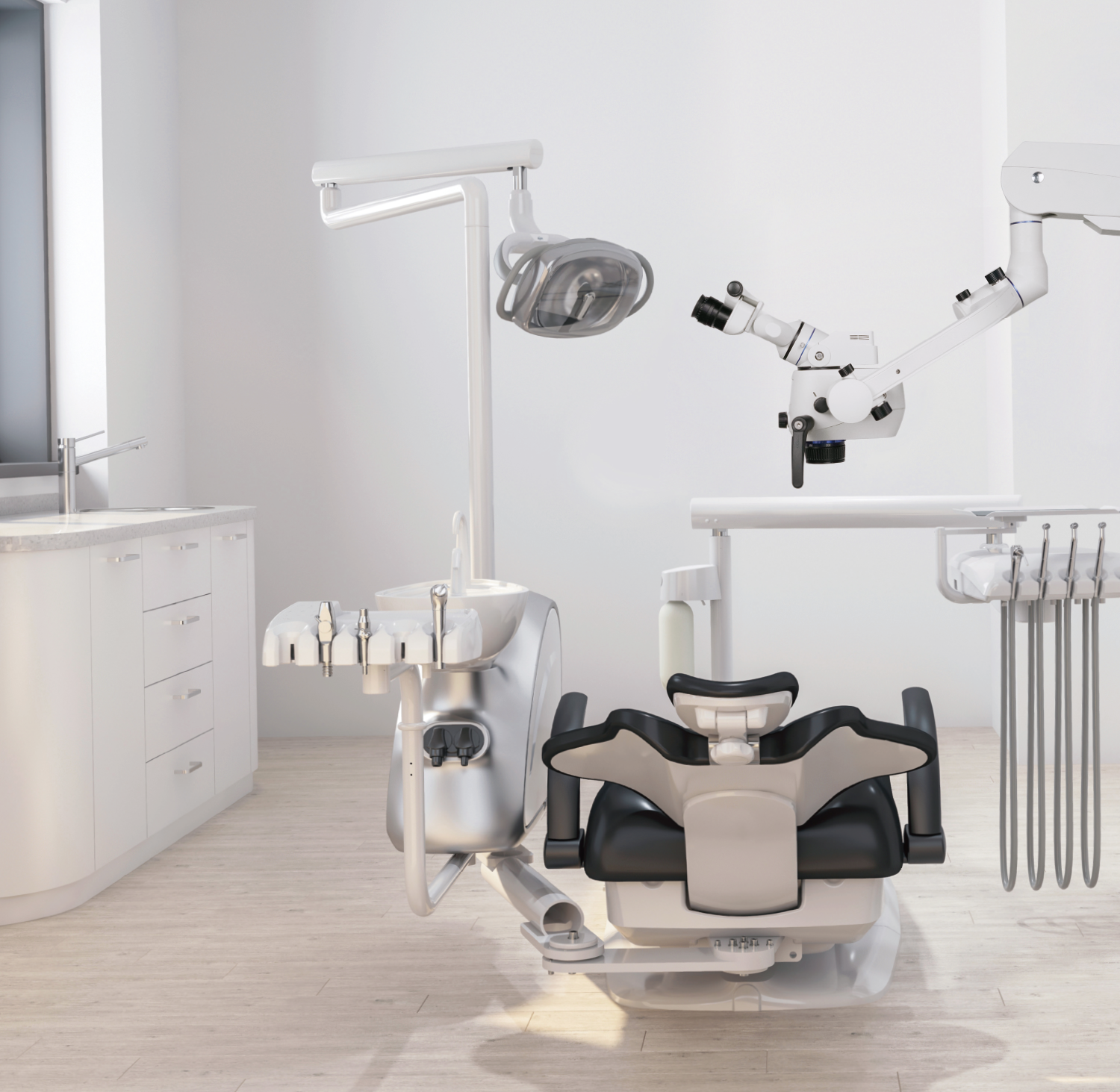

Meticulous Root Canal Treatment

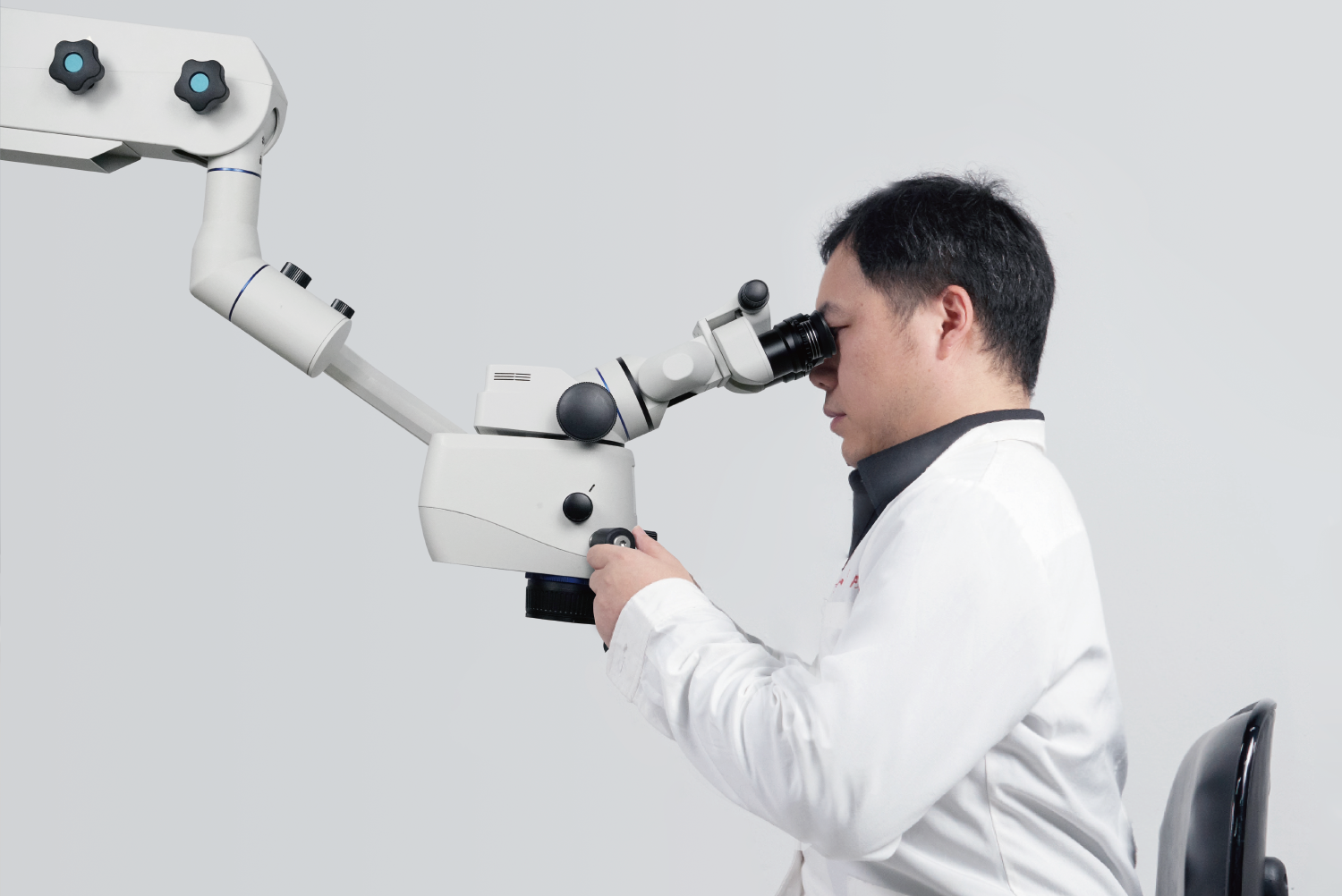

With external digital cameras applicable, the balance arm provides superior experience. Relaxed and upright position prevents neck, back and should pain in the long term.

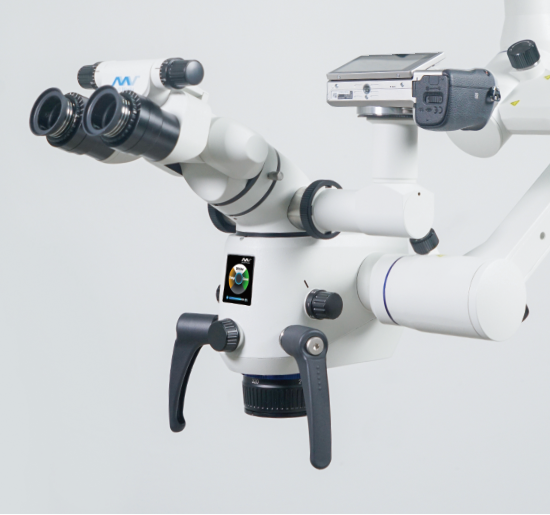

Balance Arm

The balance arm of the dental surgical microscope is equipped with double-joint balance adjustment. When the main mirror of the dental microscope is loaded with SLR cameras, mirrorless cameras, video cameras, and other accessories, the balancing force can be adjusted to make the main mirror of the dental operation microscope reach in a balanced state, which can be covered in any position, and the control is comfortable and smooth. The balance arm of SM610 can not only provide a good operation procedure but also support teaching case recording.

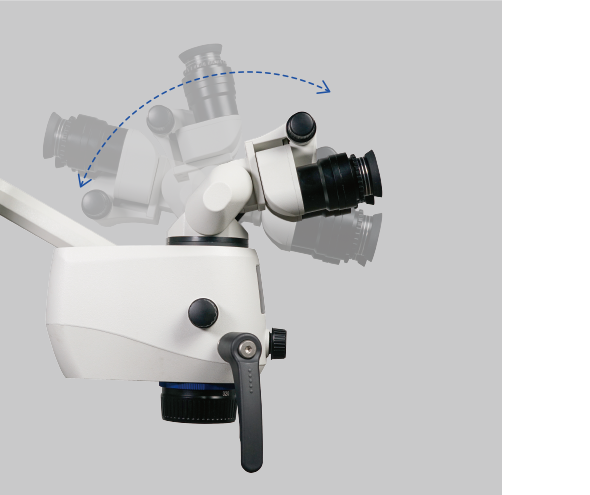

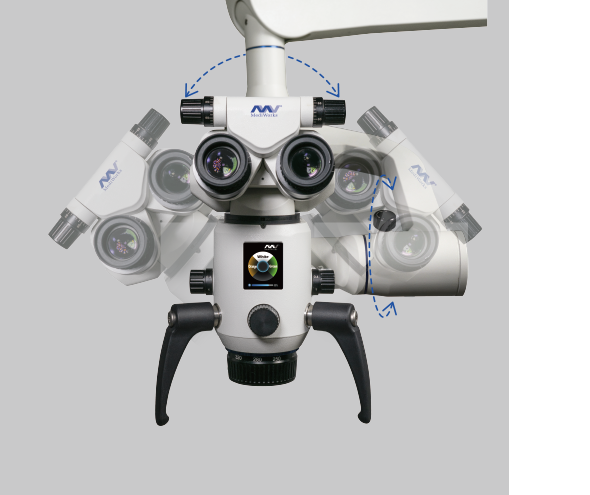

180°Inclinable Binocular Lens

When using a dental operating microscope, doctors can adjust the binocular tube at multiple angles, which is very ergonomic, ensuring that the clinician can get the most comfortable sitting posture, and effectively reduce and prevent muscle strain on the waist, neck, and shoulders.

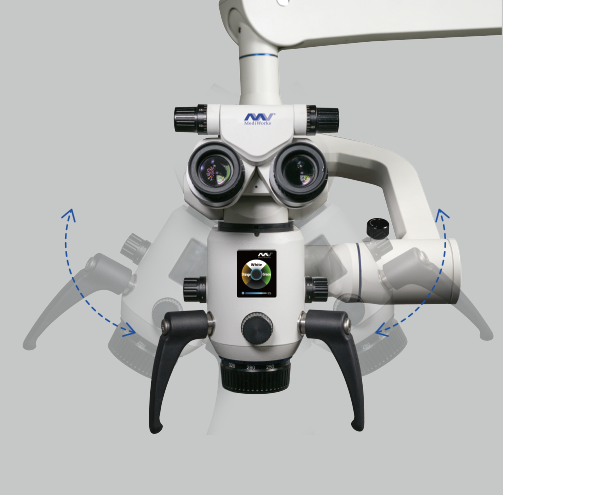

Pendulum Function

SM610 can keep the binocular tube in the horizontal observation position without being affected by the tilting work of the main mirror in the dental microscope, and the doctor can maintain a comfortable working posture.

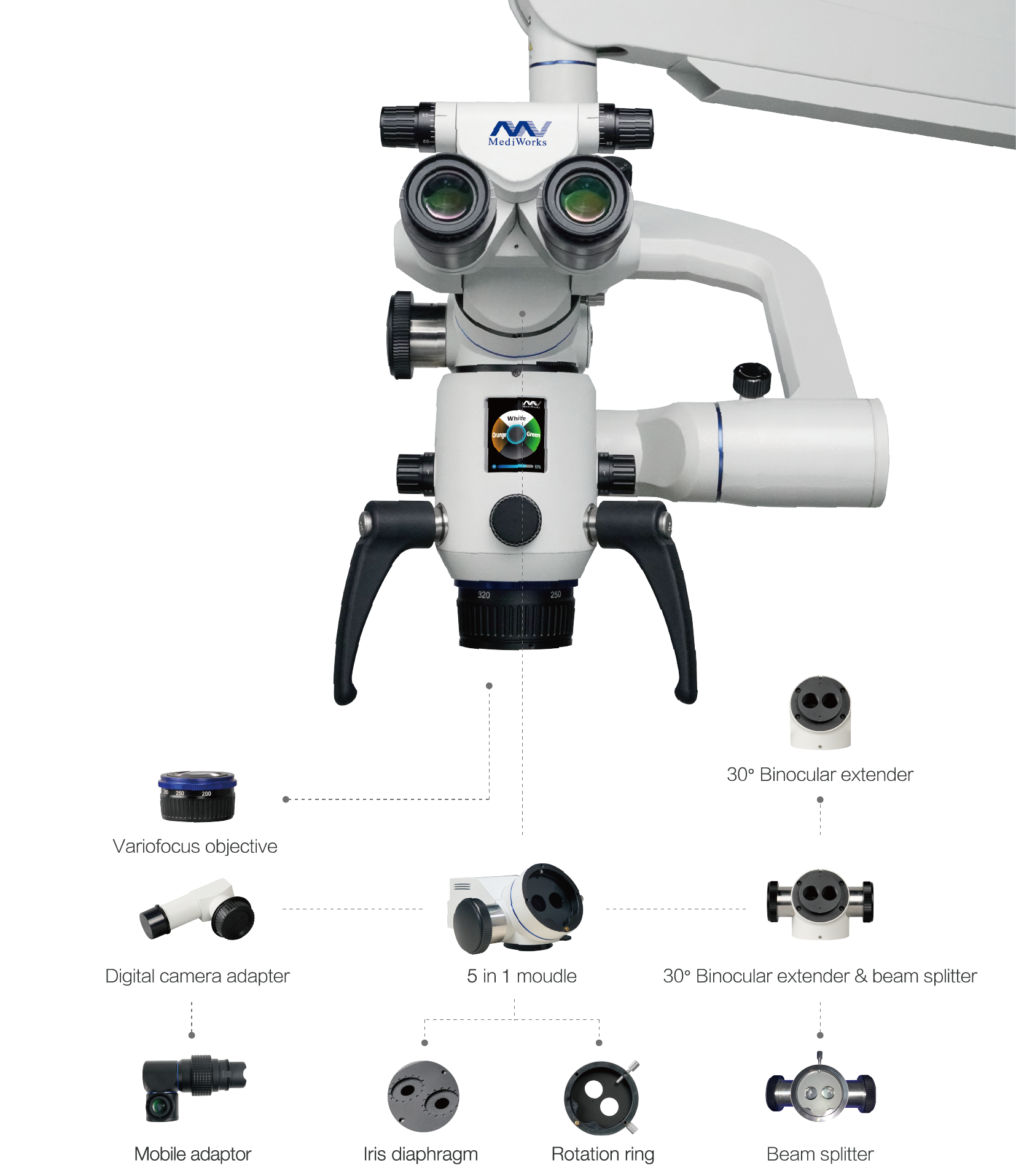

Dental Surgical Microscope Parts

MediWorks’s dental surgical microscopes also provide a variety of accessories to achieve flexible upgrades of dental microscopes. Accessories are supported to be installed to the dental surgical microscope and upgrade the product.
Variofocus objective, binocular extender, digital camera adapter, 5 in 1 module, binocular extender & beam splinter, digital camera adapter, rotation ring are optional.

SM610 Dental Surgical Microscope 20230614 官网切图-06.png

Suspension System Options

We can provide corresponding support for the installation of dental surgical microscopes in different settings. The installation methods supported by the dental surgical microscope SM610 are offered in floor type, wall type, ceiling type and desktop.

SM610 Dental Surgical Microscope 20230614 官网切图-12.png

Specification

Dental surgical microscopeClassicProPro+
Changer ratio (0.4 x,0.6 x,1 x,1.6 x,2.5 x)
5 steps druming-magnification-changer
180° tiltable binocular with PD adjustment
12.5 x wide-field eyepieces, diopter adjustable of eyepiece ± 7 D
IPD 52 mm - 75 mm
FOV 65 mm - 10 mm
Multi-Function Knob
Information Display
Illumination Intensity >70000 lx(F250)
Built-in LED

ObjectivesClassicProPro+
Varifocal 270, F=190 mm - 460 mm
Dust Cap for Objective Lens

Functions/FiltersClassicProPro+
Orange Filter & Green Filter
APO Design

DigitsClassicProPro+
30° Binocular Extender with Built-in Beam Splitter
5 in 1 module: Binocular Extender & Beam Splitter & Rotation Ring & 4K Integrated Camera (Foot switch associated) & Iris Diaphragm
Digital Camera Adaptor (Optional: Sony, Canon or Nikon)
360° Cell Phone Adaptoropt.opt.
Built-in Battery and HDMI Cable (Optional camera type: Sony, Canon or Nikon)

Mounting SystemClassicProPro+
Floor Mount, Ceiling Mount, Wall Mount

Balance ArmClassicProPro+
Balance Arm
Superb Banlance Arm

AccessoriesClassicProPro+
25° Binocular Rotation Ring
Foot Switch (Optional Camera Type: Sony, Canon or Nikon)
Iris Diaphragm (Increase the depth of field)opt.opt.


Classic


Pro


Pro+
